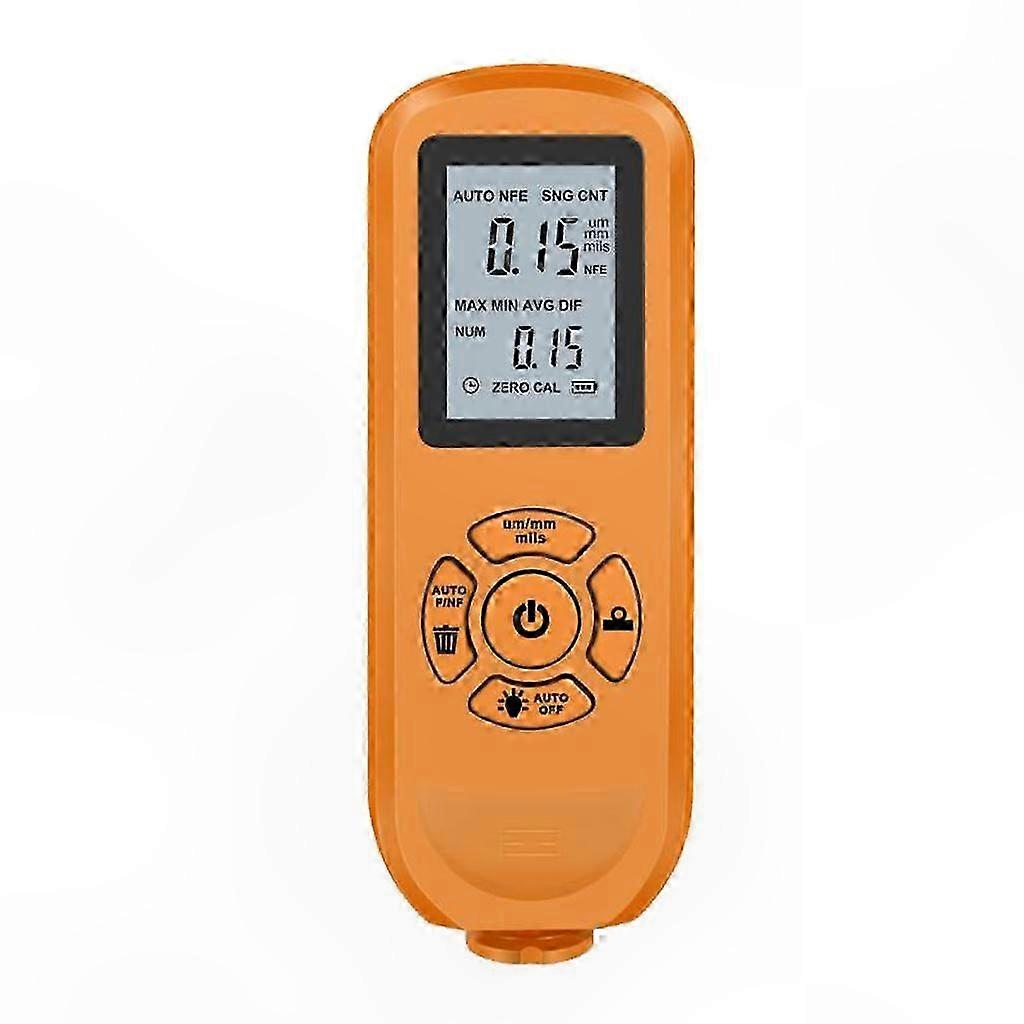

Features: brand new and high quality It is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. Measuring range is 0-2000UM. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates. Designed for non-destructively measuring the thickness of coating and painting. Essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor. Specifications: Material: ABS Size: Approx.12x4.3x2.2cm/4.72x1.69x0.87in Color: Black/Yellow Probe: F probe, N probe Magnetic Induction: Measuring principle(F), Eddy current effect(N) Measuring range: 0-2000um Precision: ±(3%+1um) Resolution: 0um-99.9um(0.1um) 100um-999um(1um) >1000um(0.01mm) Zero Calibration: Support Statistics: Average, minimum, maximum, number Unit: um,mm,mils Minimum Convex Radian: 5mm Minimum Concave Radian: 25mm Minimum Measured Area: Diameter 20mm Minimum Substrate Thickness: 0.2mm 0.05mm Maximum Measuring Speed: 2 readings per second Power Supply: 2x1.5V AAA battery(not included) Operating Environment: Temperature 0-50°C, 20-90% rh (non-condensed) Preservation Environment: Temperature:-10-60°C, 20-90% rh (non-condensation) Package Includes: 1 x Thickness gauge note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
