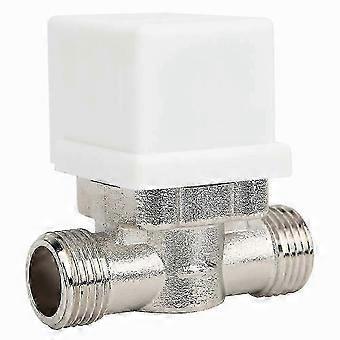

Description Item Type: Solenoid Valve_x005f_x000D_Action Mode: Pilot Type_x005f_x000D_Type: Normally Closed_x005f_x000D_Working Pressure: 0.02MPa-0.8MPa_x005f_x000D_Connection Method: G1/2 inch male thread_x005f_x000D_Use Medium: Water_x005f_x000D_Material: ABS + Brass Connector_x005f_x000D_Medium Temperature: 0-120_x005f_x000D_Ambient Temperature: 0-40C_x005f_x000D_Rated Electrical Load: DC12V, 0.3A_x005f_x000D_Rated Electric Load Variation Range: -10%~+10%_x005f_x000D_Insulation Resistance: DC500V megohmmeter after 1min insulation resistance should be 100M_x005f_x000D_Watertight Performance: Hydrostatic pressure 0.02Mpa, leakage 0.1mL/min; hydrostatic pressure 0.03~0.08Mpa, leakage 0mL/min_x005f_x000D_Water Pressure Resistance: Hydrostatic pressure 1.2Mpa, lasting 5min, no crack, deformation, external leakage_x005f_x000D_Flow Characteristics: Pressure 0.02Mpa. flow 3L/min; pressure 0.1Mpa, flow 8L/min; pressure 0.3MPa, flow 13L/min; pressure 0.8MPa, flow 25L/min_x005f_x000D_Interlayer Insulation: voltage pulse should be normal after 2s_x005f_x000D_Continuous Energization: 12h energization, no water, no deformation of the valve body, no burning of the coil_x005f_x000D_Withstand Voltage: Between the conductive part and the exposed non-charged metal part should be able to withstand, AC1500V, 50Hz, no flashover for 1min, no breakdown; AC1800V, 50Hz, no flashover for 1s, no breakdown_x005f_x000D_Non-
