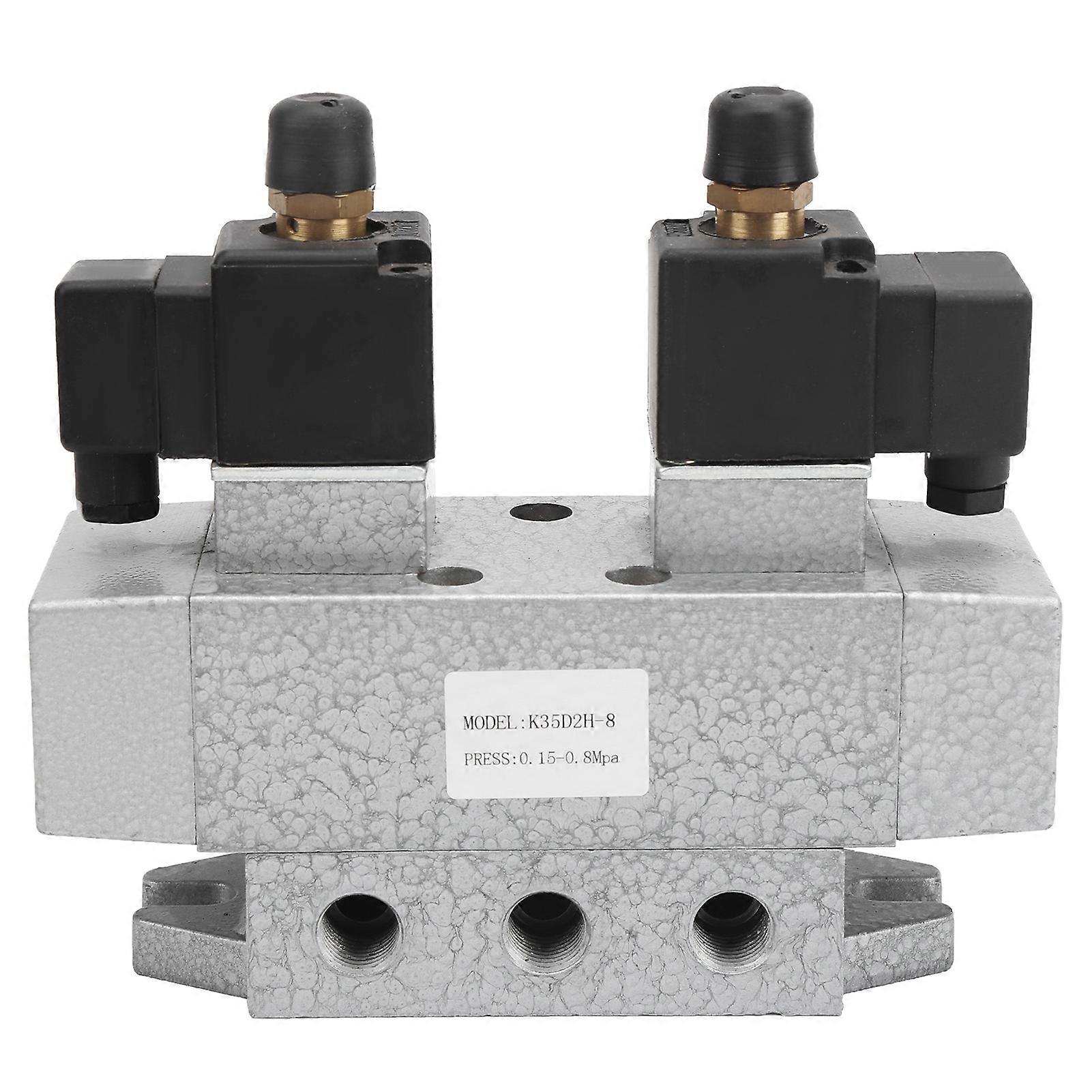

1、The spacer‑type spool valve structure adopted is very reliable in performance. 2、In the structural design of the solenoid valve, there is an automatic compensation function for sealing wear. 3、Can meet the needs of large flow media to pass, and has a larger flow capacity. 4、The structure is compact, and the base plate also uses a take‑over structure, which makes installation and maintenance work more convenient. 5、Divided into 2‑position 5‑way and 3‑position 5‑way in function subdivision, in terms of control mode, is divided into single and double air control and single and double air control introduced from the bottom plate. 6、Another point is very important, the solenoid valve has a long service life while having strong performance. Item Type: Pneumatic Solenoid Valve Material: Aluminum alloy Model: K35D2H-8 Interface Diameter: G1/4in Pressure:0.2～0.8mpa Reversing Time: ≤0.06s Maximum Allowable Commutation Frequency: 8Hz Drain Flow: 50cm³/min Ambient Temperature: -5--50℃ Medium Temperature: -5--50℃ Life: ≥1500 thousand times How to Use: 1. Engraved with "P" in the product is the intake cavity, "A", "B" are the working cavity, and "O1" and "O2" are the exhaust cavity. 2. The control power cord is connected to the junction box of the coil. 3. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on). 4. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 5. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not responsive. Model Port  Size(approx. ) C D E F G H I J L K35D2H-8 G1/4in( M12 x 1.25) 153mm / 6in 14mm / 0.6in 10mm / 0.4in 28mm / 1.1in 112mm / 4.4in 130mm / 5.1in 136mm / 5.4in 9mm / 0.4in 56mm / 2.2in 1 x Pneumatic Solenoid Valve 1 x User Manual
