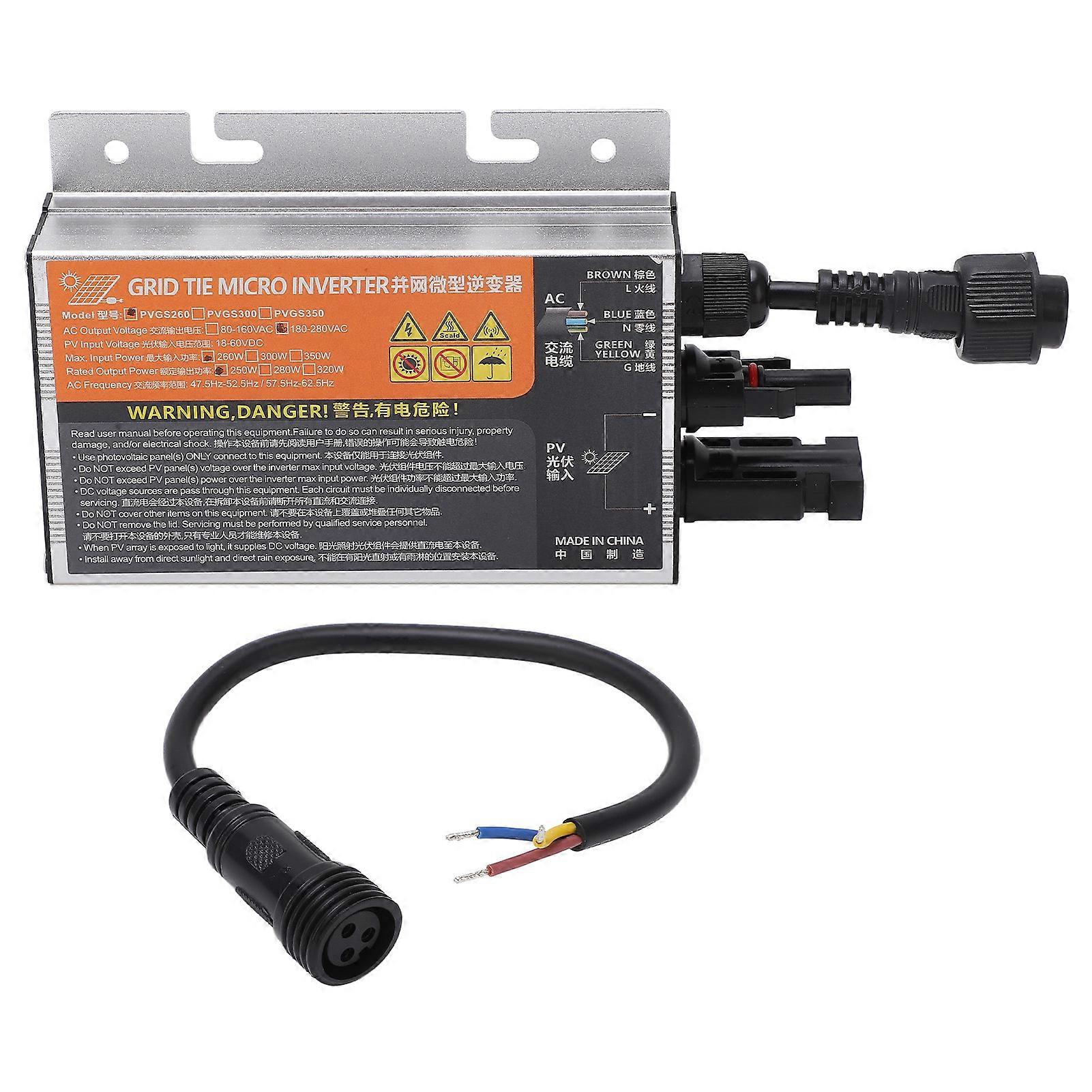

1、Current Conversion Device: The solar micro inverter is a device that converts the direct current of the solar panel into alternating current, it is small in size and capacity, and is often used in small solar energy systems. 2、Power Grid Connected: This device is a grid connected micro inverter, to make it work normally, it must be connected to the power grid normally, the power grid works normally, when the power grid stops working, it will also stop generating electricity. 3、Protection Functions: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc. 4、Input Voltage: The voltage of the photovoltaic panel should not exceed the maximum input voltage of the solar grid connected inverter, and the maximum DC input voltage is 60V. 5、Installation Note: The positive and negative poles of the solar panel cannot be reversed, if you extend the solar panel cable, you should be careful about this problem, and avoid direct sunlight and rain during installation(ventilated, dry, cool). Item Type: Solar PV Micro Grid Tie Inverter Material: Aluminum Alloy Gross Weight: 556g / 19.6oz Series: PVGS260-350 Series Product Size: Approx.21.2 x 9.5 x 3.5cm / 8.3 x 3.7 x 1.4in PV Output: Input MC4 Connectors Number: 1 set Maximum Power Point Tracking Range: 28V-55V Operating Voltage Range: 18V-60V Maximum DC Input Voltage: 60V Starting Voltage: 18V Maximum DC Input Current: 8.7A, 10A, 11.7A AC Output (AC): Single Phase Power Grid Type: 120V 230V Rated AC Voltage: 120V AC, 230V AC Output Voltage Range: 120V AC: 80V-160V, 230V AC: 180V-280V Rated AC Frequency: 50Hz, 60Hz Output Frequency Range: 50Hz: 47.5Hz-52.5Hz, at 60Hz: 57.5Hz-62.5Hz Output Power Factor: >0.99 Efficiency: Maximum Conversion Efficiency: 92.5% CEC Weighted Efficiency: at 120V AC: 90.5%, at 230V AC: 91.5% Tracking Efficiency: 99.9% Night Loss: <700mW Mechanical Data: Operating Temperature: -40℃-65℃ Protection Level: IP55 Cooling Mode: Natural cooling no fan Other Characteristics: Isolation Characteristics: high frequency transformer isolation Comprehensive Grounding: The PE end of the AC cable is the grounding cable of the device, there is no other grounding port. Protection Mode: island protection, voltage protection, frequency protection, temperature protection, current protection, etc. 1 x Inverter 1 x Manual 1 x AC Cable
